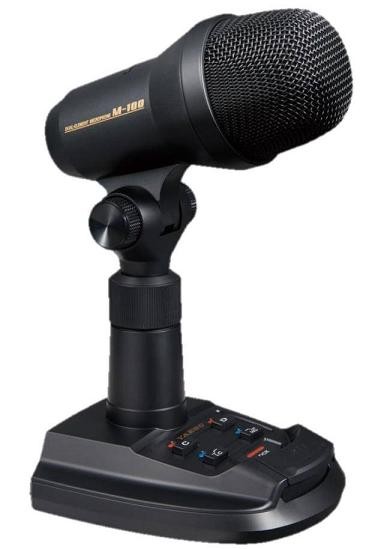

The new M-100 Microphone features a hybrid design integrating high quality Condenserand Dynamic elements.
The Condenser Microphone Element produces greater overall frequency response with clear and crisp audio characteristics
while the Dynamic Microphone Element delivers enhanced low and mid range frequency response.

A set of one touch buttons on the microphone base enables the two microphone elements to be used independently
or in combinations to create the most favorable sound quality for each person’s unique voice characteristics.

Built in Low Cut (cut off at 340Hz, 6dB/octave) and High Cut (cut off at 2kHz, 6dB/octave) controls shape, the low/ high
frequency responses enabling changes to be made in the transmitted audio characteristics, according to user’s preference and
operating conditions.

The supplied TBC (Treble Boost Cowling) further enhances the voice response attributes in the important 1,000 – 1,500 Hz
range, in order to develop a penetrating signal with a condensed and specific texture.

The PTT key actuates three Air Cylinder Tubes, which afford a smooth and comfortable keystroke free of a hard “click”.
The incorporation of a magnetic switch ensures long life and stable operation.

The highly visible ON AIR LED Indicator clearly informs the user when the PTT circuit is active. The supplied microphone cable can be used
to provide power to the M-100 simply by connecting with compatible YAESU HF transceivers *.Current YAESU HF radio owners can immediately start using this new microphone as an exciting and valuable addition to their current ham radio operation.

Whether it ’s for wider range audio with more presence or focused energy to cut through the pile ups, the M-100 is an exceptional station asset.

While the recently released M-1 microphone provides the ultimate flexibility in enhancing each user’s distinctive voice characteristics
utilizing a full featured Nine Band Graphic Equalizer we are confident that the carefully selected feature configuration of the new
M-100offers the advantage of combining the two different microphone element characteristics with simplified operation, all at a very attractive price point.

Specifications:

• Microphone Type:Dynamic and Codenser elements
• Supply Voltage:DC5.0 V ±10 %
• Frequency Response:30～17000Hz
• Sensitivity:- 60 dB（ 1kHz 0 dB=1V/1Pa）
• Microphone Impedance:600 Ohms
• Dimensions (W x H x D):5.0" x 11.0" x 5.4" (126 x 280 x 137 mm)
  * H: (Maximum with microphone flat)
• Weight:2.00 lbs ( 910 g)  w/o cable
• Warranty:3 Years
