MFJ Enterprises MFJ-260C

Email to a Friend

Be the first to review this product

Availability: In stock

$99.00

OR

Quick Overview

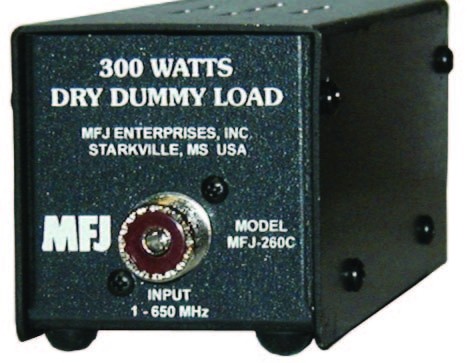

300W Dry Dummy Load

Details

The MFJ-260C is an air cooled, non-inductive resistor in a perforated metal housing. It has a SO-239 connector. It can handle a full 300W for 30 seconds.

Silk-screened derating curve to 5 minutes. Handles 300 Watts. SWR below 1.1:1 to 30 MHz, 1.5:1 from 30 to 650Mhz. It measures a super compact 2 1/4x2 1/4x7 inches.

Specifications

  • IMPEDANCE: 50 Ohms, ± 10 %
  • VSWR: Max: 1.3:1, 0-650 MHz
  • POWER: 300 Watts for 30 seconds
  • DISSIPATION: (2 min cooldown) 25 Watts continuous
  • DIMENSIONS: 2½" x 2½" x 7"
