MFJ Enterprises MFJ-264

Click on above image to view full picture

More Views

MFJ Enterprises MFJ-264

Email to a Friend

Be the first to review this product

Availability: In stock

$125.00

OR

Quick Overview

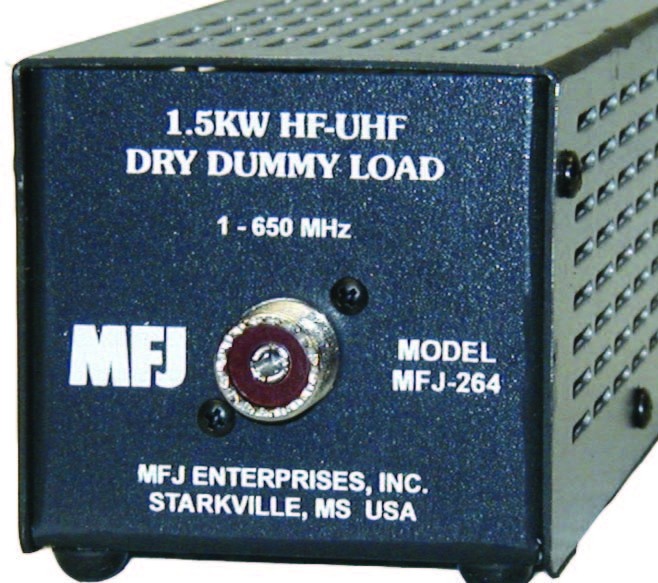

Dry Dummy Load, 1.5kW, 0-650Mhz

Details

The MFJ-264 is ham radios most versatile 50 Ohm dummy load. It does it all, works with all radios from 160 Meters through 650 MHz and from QRP to the full 1500 Watt. The MFJ-264 has a SO-239 connector.
You get SWR below 1.3 to 650 MHz and 1.1 at 30 MHz. Handles 100 Watts for 10 minutes, 1500 Watts for 10 seconds. It has a strong lightweight aluminum construction. The MFJ-264 Dry Dummy Load measures 3Wx3Hx9D inches.

Specifications.

  • IMPEDANCE: 50 OHMS VSWR: Less than 1.3:1 at less than 650 MHz
  • POWER DISSIPATION: 1500 Watts for less than 10 seconds -- 100 Watts for 10 minutes
  • VOLTAGE GRADIENT: 10 kV / inch
  • OPERATING TEMPERATURE: Up to 350C
  • FREQUENCY RANGE: 1-650 MHz; usable to 750 MHz
