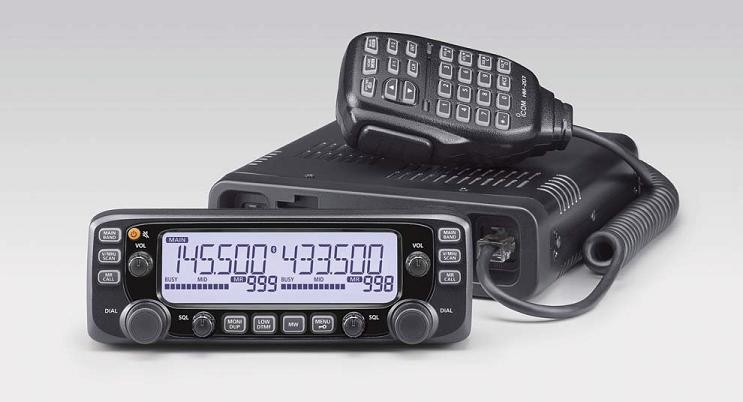

Click on above image to view full picture

More Views

Icom IC-2730A

Email to a Friend

Be the first to review this product


Quick Overview

Dualband 2/70cm FM Mobile


Icom proudly announces the debut of the new VHF/UHF dual band transceiver, IC-2730A/2730E. It is the successor of the long selling IC-2720H series, inheriting basic concepts and enhanced features such as V/V, U/U simultaneous receive capability, independent tuning knobs and separate controller. The large white backlight display provides for easy, intuitive operation. Furthermore, with the optional UT-133 Bluetooth ® unit and VS-3 Bluetooth headset, hands free communication and remote control of the radio with three programmable buttons are possible.

VS-3 Bluetooth® Headset (Option)

The optional Bluetooth® headset, VS-3 can wirelessly control the IC-2730A/E with three programmable and PTT buttons and provides VOX operation for hands-free communication. Providing you with convenient communication in a vehicle.

* Optional UT-133 Bluetooth® unit must be installed in the IC-2730A/E.

Easy-to-See Large White Backlight Display

The display size of the IC-2730A/E is 1.5 times larger than the IC-2720H/E2725. Frequency indications become larger and the white backlight provides higher contrast.


Easy Vehicle Mounting with Optional MBF-1

The combination of the optional MBF-1 suction cup mounting base and MBA-5 controller bracket provides easy tilt and swivel adjustments for mobile operation. The arge suction cup can be mounted to dashboards or other flat surfaces and can be removed easily.

HM-207, Remote Control Microphone

The supplied remote-control microphone, HM-207 allows you to control various settings from the microphone. The backlit buttons help with operation in low light conditions.

V/V, U/U Simultaneous Receive Capability

The IC-2730A/E is a dual band transceiver, which provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Simple one-touch of a button allows you to change between the main (transmit) band and sub band.

Controller Attachment to the Main Unit with Optional MBA-4

With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit allowing you to connect the microphone to either unit.

Independent controls for each band

Main dials, volume, squelch knobs and primal buttons are symmetrically laid out. Various operation including frequency tuning can be made smoothly and straightforwardly.

Other Features.

  • Wide frequency coverage, 118–136.975MHz
    (AM/AM-N), 137–174MHz and 375–550MHz (FM/FM-N)
  • 50W output power on both VHF and UHF bands
  • 04 DTCS and 50 CTCSS tone codes
  • Split tone function allows you to encode and decode different CTCSS/DTCS tones
  • 1000 memory channels, 2 call channels and 50 scan edges with 8-character channel name
  • Cross band repeater capability
  • Free download PC programming software, CS-2730
  • Versatile scanning capability
  • Squelch delay and squelch attenuator
  • Sub band auto mute function
  • Sub band busy beep function
  • Auto repeater functions* (* USA/KOR versions only)
  • Auto power off
  • Time-out-timer
  • 6 DTMF auto dial memories
  • Weather channel receive with weather alert* (* USA version only)
  • CI-V remote control capability (through OPC-478UC)
