Diamond SX-400

Click on above image to view full picture

More Views

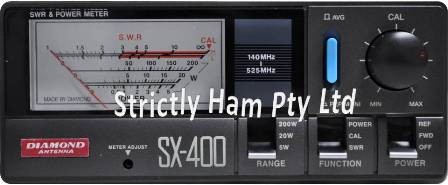

Diamond SX-400

Email to a Friend

Be the first to review this product

Availability: In stock

$189.00

OR

Quick Overview

VSWR Power Meter

Details

  • Frequency range: 140 to 525MHz
  • Power display range: 5W 20W 200W
  • Accuracy at full scale: 5W Range ±10% (F.S), 20W Range ±5% (F.S),200W Range ±5% (F.S), (Add -10% of full scale at 220 to 420MHz, add +10% of full scale at 450 to 525MHz) Minimum power at SWR measurement: 4W
  • Insertion loss: Less than 0.1dB (140 to 250MHz) Less than 0.2dB (400 to 470MHz) less than 0.3dB (525MHz)
  • Measurement function: Forward RF power, Reflected RF power, SWR, PEP monitor
  • Connector:PL-259 female (SO-239) or N Series female jack
  • Dimensions: 155W x 63H x 103D mm
  • Weight: 540g
  • Impedance:50ohms
