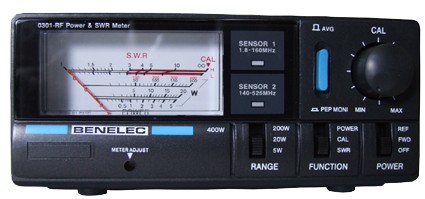

This instrument is a high frequency SWR & Power Meter, which can be used in fields of measuring amateur wireless communication as well as other measuring occasion with corresponding frequency. It can measure transmitted power, reflected power and SWR etc. when connected between transmitter and antenna.
It is convenience for observing the peak envelope power (PEP) by using the monitor when the instrument is in SSB operating mode.
Technical Specifications | ||
Frequency Range | 1.8 to 160 MHz | 140 MHz ~ 525 MHz |
Power Measurement | ||
Maximum Power | (2) At FM, CW, FAX, RTTY | |
1.8 to 100 MHz: 100W 100 to 160 MHz: 70W | ||
140 to 220 MHz: 150W 400 to 525 MHz: 100W | ||
(2) In pulse state: 200W | ||
Accuracy (Full Scale) | At "5W" step, +10% | |
At "20W" step, +10% | ||
At "200W" step, +10% | ||
SWR Measurement | ||
Minimum Power | 1W | 4W |
Measuring Range | 1.0 to � | |
Consumption
|
1.8 to 160 MHz not more than 0.2dB | |
140 to 525 MHz: not more than 0.3dB | ||
Input / Output Jack | 50W, 1 GL 1Bz - 50F | |
Function | Forward power, Reflect power, SWR, PEP monitor | |
Size | 150 mm (L) x 100mm (W) x 65mm (H) | |
Weight | Approximately 720g |
